Copper Wire Braiding Screened Flexible Control Cable For Interconnecting

Brand Name : Chengtiantai cable

Model Number : KVVP

Certification : CCC, ISO

Place of Origin : Shenzhen, China (mainland)

MOQ : 1000 m

Price : On request

Payment Terms : L/C, T/T

Delivery Time : 7/ 15 Working days

Packaging Details : Steel wooden drum

Type : Control cable

Voltage : 450/750 Voltes

No. of cores : 2 to 61 core

Insulation : PVC

Core Identification : Numbering

Screening : copper wire braiding

Contact Now

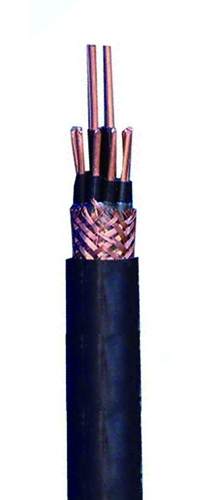

Copper Conductors PVC Insulated Copper wire braided and PVC Sheathed Control Cable



Copper braided multicore PVC cable for protection against electrical interference. Suitable for as interconnecting cables for measurement, control or regulation in control equipment for assembly and production lines, conveyors, and computer units.



⊙ STANDARDS/REFERENCES:

  • International: IEC 60227-5
  • National: GB/T 9330-2008

⊙ CONSTRUCTION CHARACTERISTICS
CONDUCTOR:

  • bear copper class 1, class 2 (stranded conductors) according to IEC 60228

INSULATION:

  • PVC (Polyvinyl Chloride)
  • Core Identification :cores with continuous white numbering

​TWISTED

  • Cores twisted in layers

WRAPPING:

  • Polyester tape (PET) wrapping

SCREEN

  • copper wire braiding

SHEATH:

  •  PVC (Polyvinyl Chloride)

Sheath color: black
⊙ DIMENSIONAL CHARACTERISTICS
[Number of cores ]: 2, 3, 4, 5, 7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 48, 52, 61
[Conductor size] : 1.0, 1.5, 2.5, 4, 6, 10 mm2
⊙ TECHNICAL DATA
[Rated voltage (Uo/U) ]: 450/750V
[Test voltage ]:3000 V
⊙ USAGE CHARACTERISTICS
[Maximum operating temperature] : 70 ℃
[Short-circuit max conductor temperature ( duration up to 5s ) ]:160 ℃
[Temperature range]: -5 to +70 ℃
⊙ INSTALLATION CONDITION
[Installation temperature ]: 5 ℃
[Minimum bending radius ]: 6 X cable diameter
[Recommended maximum tensile stress]: 50 N/mm2

 Copper Wire Braiding Screened Flexible Control Cable For Interconnecting




Cable Dimensions



No. of

cores x Cross-sec.

Outer

diameter

Weight

approx.

Base

Unit

 Price
(base price)
No. x mm2 mm kg/ km — —
2 x 1 10.7 124 m Price on request
2 x 1.5 11.7 157 m Price on request
2 x 2.5 12.9 201 m Price on request
2 x 4 13.7 346 m Price on request
2 x 6 14.9 351 m Price on request
3 x 1 11 143 m Price on request
3 x 1.5 12.3 177 m Price on request
3 x 2.5 13.4 238 m Price on request
3 x 4 14.3 347 m Price on request
3 x 6 14.3 470 m Price on request
4 x 1 11.7 163 m Price on request
4 x 1.5 12.9 203 m Price on request
4 x 2.5 14.3 330 m Price on request
4 x 4 15.9 436 m Price on request
4 x 6 17.3 530 m Price on request
5 x 1 12.3 193 m Price on request
5 x 1.5 13.7 248 m Price on request
5 x 2.5 15.9 390 m Price on request
5 x 4 17 502 m Price on request
5 x 6 18.5 626 m Price on request
7 x 1 13 217 m Price on request
7 x 1.5 14.5 330 m Price on request
7 x 2.5 16.9 472 m Price on request
7 x 4 18.1 601 m Price on request
7 x 6 19.9 789 m Price on request
8 x 1 13.7 243 m Price on request
8 x 1.5 16 387 m Price on request
8 x 2.5 17.9 524 m Price on request
8 x 4 19.2 681 m Price on request
8 x 6 21.6 989 m Price on request
10 x 1 15.9 438 m Price on request
10 x 1.5 17.9 520 m Price on request
10 x 2.5 20.3 726 m Price on request
10 x 4 22.3 941 m Price on request
10 x 6 24.4 1080 m Price on request
12 x 1 16.3 124 m Price on request
12 x 1.5 18.3 157 m Price on request
12 x 2.5 21.1 201 m Price on request
12 x 4 22.9 346 m Price on request
12 x 6 25.4 351 m Price on request
14 x 1 16.9 124 m Price on request
14 x 1.5 19.1 157 m Price on request
14 x 2.5 21.7 201 m Price on request
14 x 4 23.9 346 m Price on request
14 x 6 26.5 351 m Price on request
16 x 1 17.5 124 m Price on request
16 x 1.5 19.9 157 m Price on request
16 x 2.5 23.1 201 m Price on request
19 x 1 18.2 124 m Price on request
19 x 1.5 20.7 157 m Price on request
19 x 2.5 24.1 201 m Price on request
24 x 1 20.5 124 m Price on request
24 x 1.5 23.9 157 m Price on request
24 x 2.5 27.5 201 m Price on request
27 x 1 20.9 124 m Price on request
27 x 1.5 24.3 157 m Price on request
27 x 2.5 28 201 m Price on request
30 x 1 21.9 124 m Price on request
30 x 1.5 25.1 157 m Price on request
30 x 2.5 28.9 201 m Price on request
37 x 1 23.2 124 m Price on request
37 x 1.5 26.7 157 m Price on request
37 x 2.5 30.9 201 m Price on request
44 x 1 25.5 124 m Price on request
44 x 1.5 29.5 157 m Price on request
44 x 2.5 34.9 201 m Price on request
48 x 1 25.9 124 m Price on request
48 x 1.5 29.9 157 m Price on request
48 x 2.5 35.4 201 m Price on request
52 x 1 26.5 124 m Price on request
52 x 1.5 30.7 157 m Price on request
52 x 2.5 36.3 201 m Price on request
61 x 1 27.8 124 m Price on request
61 x 1.5 32.9 157 m Price on request
61 x 2.5 38.3 201 m Price on request





* Weight and dimensional information is provided as an approximate guide only.



⊙ Payment terms

 T/T, 30% deposit before production, 70% balance before delivery



⊙ Packaging & Delivery



* Standard delivery length: 100 m/ coil or 500 m per drum



Packaging details Delivery
Copper Wire Braiding Screened Flexible Control Cable For Interconnecting Copper Wire Braiding Screened Flexible Control Cable For Interconnecting Copper Wire Braiding Screened Flexible Control Cable For Interconnecting
Steel Wooden Drums Cable Drum In container shipped in 15 days after payment



⊙ Cable Drum Data



CABLE DRUMS D1=Flange Diameter(mm) W=Useful Width (mm) D2=Barrel Diameter(mm)
Copper Wire Braiding Screened Flexible Control Cable For Interconnecting 1000 700 500
1100 700 550
1200 700 600
1400 750 710
1600 900 900
1800 1120 1000
2400 1150 1300



⊙ Delivery Port:



Copper Wire Braiding Screened Flexible Control Cable For Interconnecting Copper Wire Braiding Screened Flexible Control Cable For Interconnecting Copper Wire Braiding Screened Flexible Control Cable For Interconnecting
Port of Shenzhen Port of Hongkong Port of Guangzhou
