Breakout Tight Buffered Fiber Optic Cable 2 - 24 Fiber Count PVC / LSZH Jacket GJPFJV

Breakout PVC Jacketed Cable

Application

Breakout Cable is designed for routing to different locations and direct termination of fibers in the field. The cable is mostly suitable for pre-terminated cable assemblies.

Description

The cable contains 2 to 36 fibers which are individually buffered tight or semi-tight construction. Each fiber is individually protected in a mini cable.

Aramid yarn will be applied either inside the mini cable or within the inner jacket of the cable.

The color coded mini cable may be stranded around a central strength member which can be either FRP or flexible all-dielectric. Outer Jacket may be PVC or LSZH.

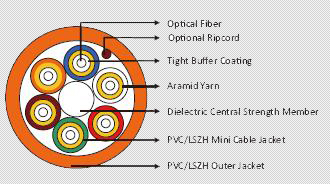

Construction




Features & Benefits
– Available in sizes from 2 to 24 fibers
– The individual single fiber units (of which these metal-free breakout cables are composed) permit direct (de-tensioned) terminations with separate single-way connectors, eliminating the splicing of pigtails and/or breakout kits
– Semi-tight buffered optical fibers are easily strippable
– Length marking in meters for easy determination of the cable length
– Full dielectric construction, no grounding required
Performance:
– Temperature:

• Storage -40˚C to +70˚C
• Installation 0˚C to +50˚C
• Operating -20˚C to +70˚C


– Minimum Bend Radius:

• 20 X OD—Installation
• 10 X OD—In-Service


– Maximum Crush Resistance:

• 850 lbs/in (1485 N/cm)

– Maximum Vertical Rise

• 1,640 ft (500 m)
